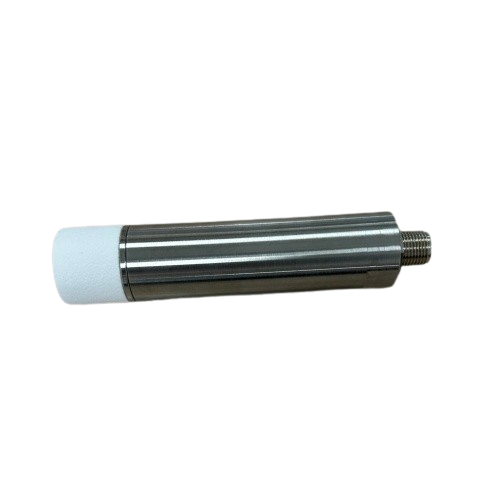

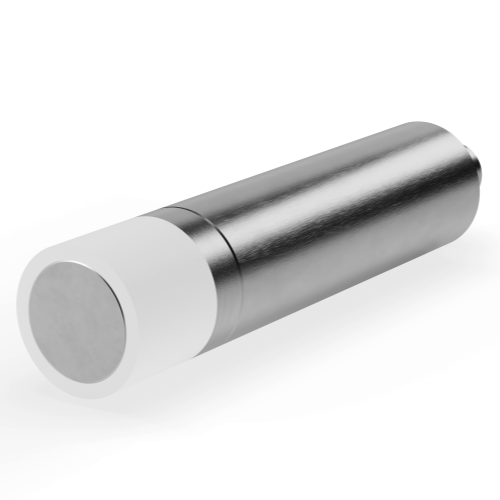

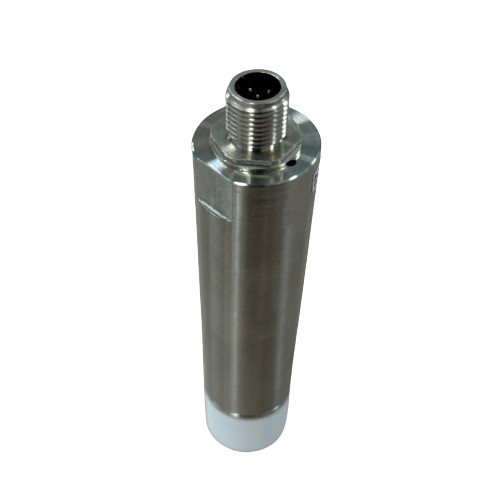

Teleclear 100-VS is the IR carbon dioxide gas sensor for reliable and accurate CO2 measurement in incubators.
It support 100℃ + 100% Humidity Moist-sterilizable.
This IR CO2 sensor has been specially optimized for the measurement of 5 Vol-% CO2.
in cell incubators to manage ideal cell and tissue growth.
The sensor can be placed directly in the incubation chamber to measure the exact cell experienced environment.
It determines the carbon dioxide concentration based on its characteristic infrared absorption.
| General | Unit |
|---|---|
| Order number | 7208.01-B.00 |
| Measuring gas | CO₂ |
| Measurement range | 0 – 20 Vol.-% |
| Gas supply | Diffusion |
| Warm up time |
< 1 minute (start-up) < 15 minutes (full spec) |
| Measurement | |
| Accuracy | ± 0.2 Vol.-% ± 2 % of reading |
| Response time (t₉₀) | ≤ 45 s |
| Digital resolution | 0.001 Vol.-% |
| Long term stability | ≤ ± 0.25 Vol.-% at 5 Vol.-% / year |
| Humidity correction | 0 … 200 hPa H₂O |
| Electrical | |
| Supply voltage | 12 – 24 VDC |
| Power consumption | < 2 W |
| Digital interface | RS485 |
| Digital protocol | Micro‑Hybrid industrial protocol |
| Analogue interface | 5 (current 4 – 20 mA) |
We provide full technical support for integration, including:
Q1: What is an NDIR CO₂ sensor?
A: It is a sensor that uses infrared absorption technology to measure CO₂ concentration with high accuracy and long-term stability.
Q2: Can CO₂ sensors be used in incubators?
A: Yes, Teleclear provides dedicated high-temperature CO₂ sensors designed specifically for incubator environments.
Q3: Do you support customization?
A: Yes, we offer full OEM and ODM services including hardware, firmware, and communication interfaces.
Q4: What output interfaces are available?
A: Depending on model, we support UART, RS485, and other customized communication protocols.
If you are looking for a reliable CO₂ sensor supplier, please contact Teleclear for technical support and quotation.
